The Workbench
Getting Started
This tutorial shows you how to create your own light-weight process Workbench ideally suited for prototyping algorithms on process (and other) models. We assume that your are familiar with the Hello World tutorial.
A simple Workbench
Let's create a Java application that can host several ProcessEditor JPanels, provides a menu, icons, etc.:
import com.inubit.research.gui.Workbench; public class workbench1 { public static void main(String args[]) { // Create a new Workbench Workbench wb = new Workbench(); // And show the JFrame wb.setVisible(true); } }

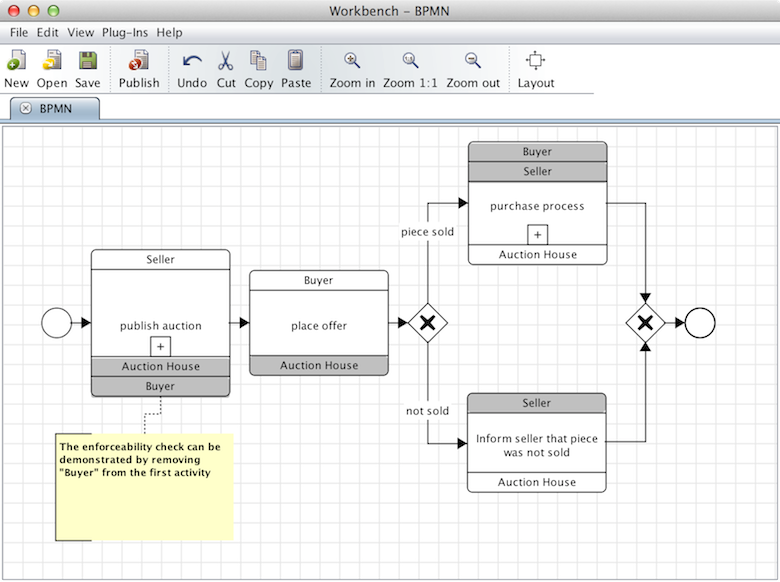

The lines of code required are even fewer than for Hello World, since the Workbench class is already a Java Application with a JFrame. The running program should look like this but just with an empty model. You can find the BPMN 2.0 Choreography auction model here.
![Workbench 1 with a BPMN choreography model](pics/workbench1.png)
The Preferences
The ProcessEditor as well as the corresponding Workbench use a preferences file for persisting properties. You can find a UI in the workbench at (tbd).
Change the Properties in the UI
Set the Properties via the API
Plugins: Implementing your own Algorithms
The workbench provides a number of Plugins, which can be easily extended. You can find the Plugins under the corresponding menu item. Just try them out with a few sample files (tbd).
Creating your own Plugin
A standard use-case of the Process Editor framework is writing a plugin for a certain model type. As you've seen above, a plugin can implement arbitrary algorithms on models, so it is suitable for prototyping an algorithm of a thesis. If you need your own model first, please check the corresponding tutorial. We will showcase a simple plugin that checks whether a given Petri net is a Workflow net.
To register a new plugin at the Workbench, just call the following method, in our case at the end of the main method (source workbench2.java):
// Add custom Workflow net plugin wb.addPlugin(new workbench2plugin(wb));
The source code for the class workbench2plugin (source workbench2plugin.java):
public class workbench2plugin extends WorkbenchPlugin { import [...] // Your IDE will figure this out // Create a private variable for holding the Workbench instance private Workbench workbench; // Create new constructor to fetch workbench public workbench2plugin(Workbench workbench) { super(workbench); this.workbench=workbench; } @Override public Component getMenuEntry() { JMenuItem workflowNetsChecker = new JMenuItem("Check if Workflow net"); // Add action workflowNetsChecker.addActionListener(new ActionListener() { @Override public void actionPerformed(ActionEvent e) { // Get the current ProcessModel and check if it is of type PetriNet if (!(workbench.getSelectedModel() instanceof PetriNetModel)) { JOptionPane.showMessageDialog(null, "The selected model is not a Petri net!"); } // Get Petri net PetriNetModel model = (PetriNetModel)workbench.getSelectedModel(); // A Petri Net is a Workflow net if it has exactly one start node... java.util.ListstartPlaces = new LinkedList (); // Iterate over all nodes to count start nodes for (ProcessNode node: model.getNodes()) { if (node instanceof Place && model.getIncomingEdges(Edge.class, node).size()==0) startPlaces.add(node); } // I guess you've got the idea and can implement the remaining checks yourself JOptionPane.showMessageDialog(null, "Found "+startPlaces.size()+" Start Places!"); } }); return workflowNetsChecker; } }
Fitting Model Types and Plugins: Making it your Application
If you would like to use the workbench as a foundation for your own application, you can restrict the model types and plugins to the ones you need. The following handy lines of code allow you to create a stand-alone prototype that focuses on your plugin/algorithm:
[...] // Set the title wb.setWorkbenchTitle("My Workbench"); // Set the version wb.setWorkbenchVersion("1.0"); [...]
A more advanced implementation might sub-class the workbench (tbd).
